6.5 Row setup

CAUTION

A warning will be shown before you enter the settings menu: Do not change any settings in this menu if you are unsure. An incorrect value could cause a row unit to stop working.

Figure 1.

  1. Seed motors

  2. Fertiliser motors

  3. Micro-granulate motors

  4. BioDrillmotors

  5. Save the row unit setting

  6. Open a saved row unit setting

  7. List of row units and their mapping

Every motor on the seed unit, micro-granulate unit and fertiliser unit must be programmed to the correct motor output on WS9. All machines are programmed to the correct machine type at the factory, but new programming may be required in conjunction with software updates or WS9 replacement.

Adjustment

Important

Two outputs cannot have the same setting. If they do, this triggers a CAN bus communication error alarm.

  1. Select which device is to be set using the function buttons (A), (B) (C) or (D); see Figure 1.

  2. The symbol for the selected row unit will turn green.

  3. The list (F) for the selected unit is displayed.

  4. Change the value by pressing the field to be set and enter a new value in the pop-up window. Settings must be made in accordance with 16 Motor outputs.

Save the setting

  1. Click (E); see figure Figure 1 to save current row unit setting. All devices (seed, fertiliser, micro granulate and BioDrill) are saved.

  2. Enter a name/descriptor of your choice for the row unit setting.

    Press to confirm.

    Press to cancel.

    Figure 2.

Open a saved setting

  1. Click (F); see figure Figure 1 to open a saved row unit setting. All devices (seed, fertiliser, micro granulate and BioDrill) are opened.

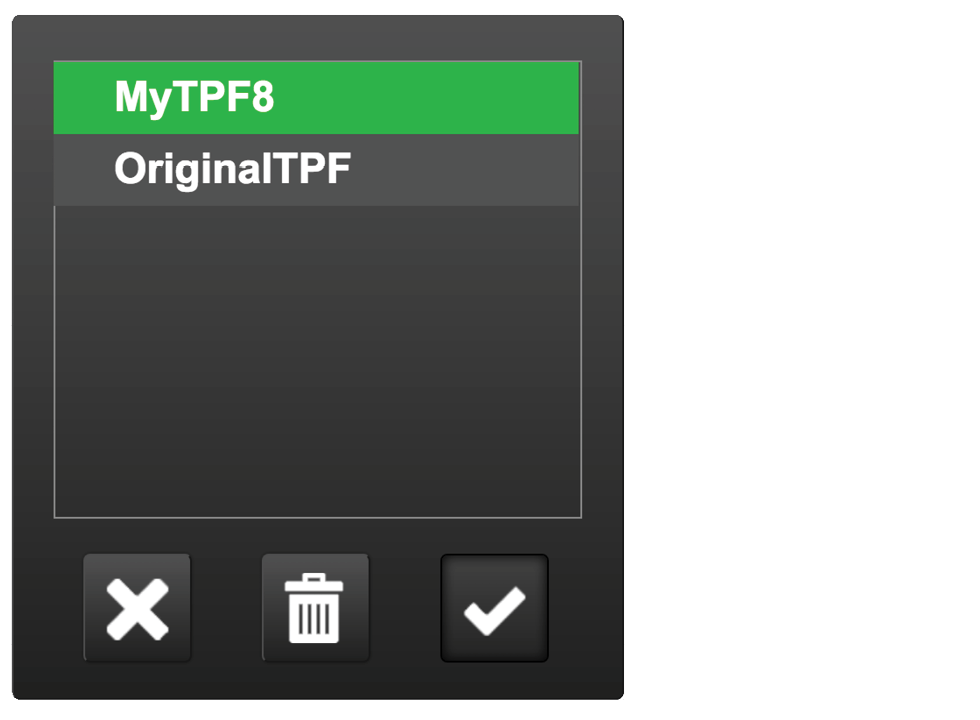

  2. Figure 3.

  3. Highlight a saved row unit setting. The name is highlighted in green.

    Press to open a row unit setting.

    Press to delete a row unit setting.

    Press to cancel opening a row unit setting.
