7.5.2.4 Feed stop
Enter the desired value for when the machine is to stop dispensing seed when the machine is lifted from the drilling position.

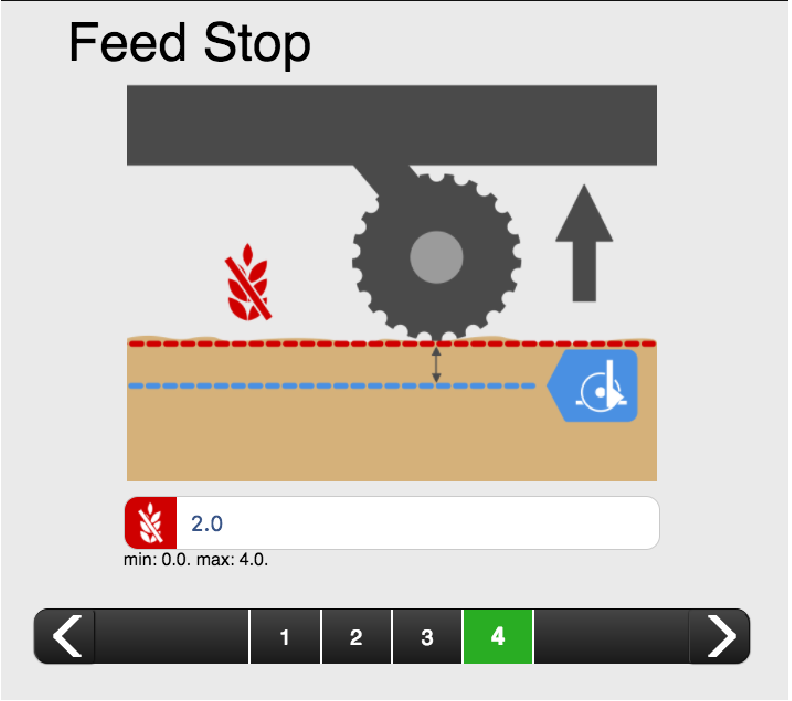

Figure 1.
Specify in the text field the distance between the feed output stop and the drilling depth in the scale value.
Example: If scale value 1.5 is specified and the drilling depth is set to scale value 4, the feed output will stop when the machine has been raised and passes scale value 2.5.
Confirm with the arrow to the right.
