7.5.2.3 Feed output start
Enter the desired value for when the machine is to begin dispensing seed when the machine is lowered to the drilling position.

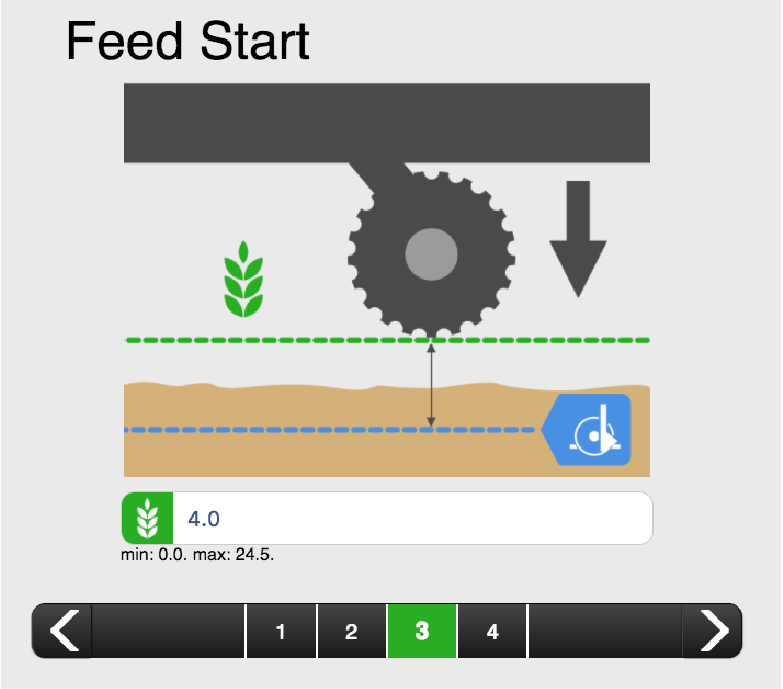

Figure 1.
Specify in the text field the distance between the feed output start and drilling depth in the scale value.
Example: If scale value 3 is specified and the drilling depth is set to scale value 4, the feed output will start when the machine has been lowered and passes scale value 1.
Confirm with the arrow to the right.
