7.5.1.1 Raised level

  1. Use the tractor’s hydraulics system to raise the drill discs as high as possible above ground level.

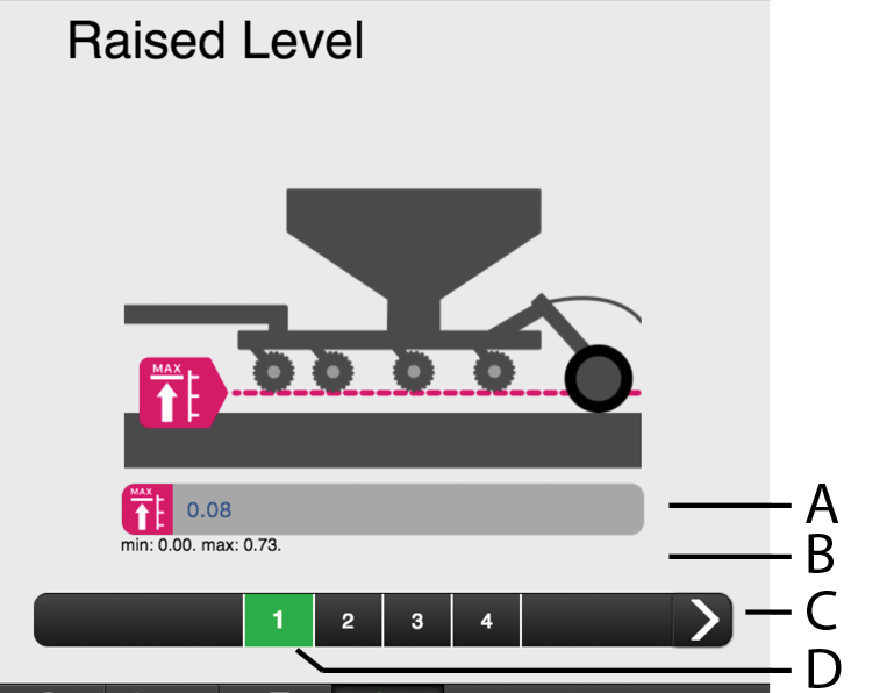

    1. Text field

    2. Current valid interval

    3. Arrow for confirming and proceeding to next stage

    4. Current stage, highlighted green

    Figure 1.

  2. The current position of the lifting cylinder will be updated automatically and shown in the text field (A).

  3. Confirm with the arrow to the right (C).
