6.3.3 Customised tramlining

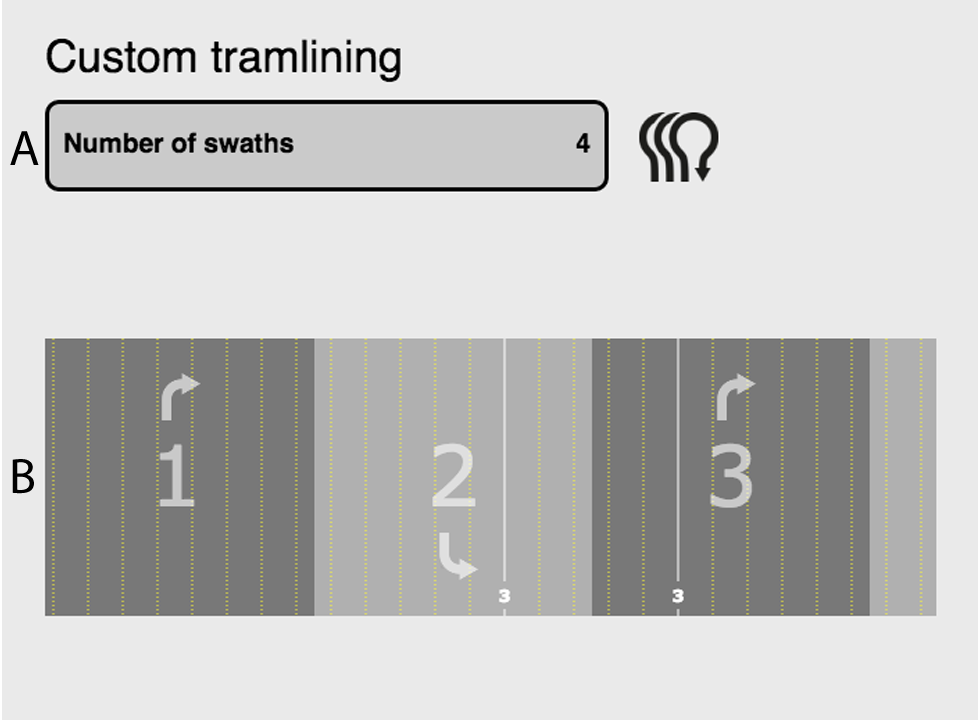

Figure 1.

The screen above displays customised tramlining:

  1. Number of bouts

  2. Bouts. Displays whether the row unit will sow or tramline.

The yellow dotted lines in (B) display the row units that will sow and the white solid lines display the row units that will shutdown because of the tramlining.

The above example displays that row unit 3 will be shutdown during bouts 2 and 3 because of the tramlining.
