11.2.3 Machine settings
If a machine configuration needs to be done, keep in mind that an invalid machine configuration can damage the machine.
Figure 1.
Selecting machine type. TPF, TPL, TPR, TPT or TPV.
Seed Central Fill (NO/2m³/3m³)
Number of workstations (WS9) on the machine 1
Generator control FIXED/AUTOMATIC (only for TPL; the generator on a TPL can either have its exciter connected to fixed voltage (fixed) or switched on as needed from the software (automatic). The selected option must correspond to the machine’s cable harness.
BioDrill motors (0/1/2)
Liquid fertiliser ON/OFF
Liquid fertiliser work pressure
Figure 2.
Height detector (1/2)
Height detector type. This is displayed if the number of height detectors is 1. If two detectors are selected, a right and left detector type will be displayed.
Right height detector type. Only displayed when the number of height detectors is set to 2.
Calibrating the height source
Setting of the number of level sensors for fertiliser (1/2)2
Hydraulic wing folding ON/OFF 3
Seed level sensor ON/OFF
Figure 3.
Markers ON/OFF
Row unit pressure ON/OFF
Fertiliser coulter pressure
Wingspan (7.2m or less/ 8.1m or more)
Wing pressure control. 4
Figure 4.

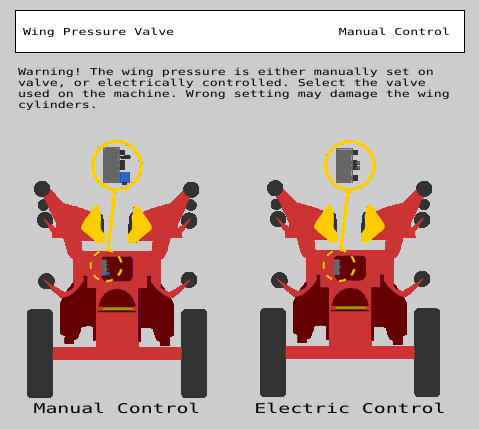

Setting wing pressure control. Manual or electronic wing pressure control is specified depending on the type of valve block mounted on the machine.
Figure 5.
Fan pulses per revolution, seed.
Fan pulses per revolution, fertiliser
Fan pulses per revolution, central Fill
Fan pulses per revolution, BioDrill
Setting of Aux connection. Only selectable for TPL.
Choose for external fertiliser or WideLining.
NoteOn some machines, the Aux 1 connection may be called W09X105.
