7.7 Checking lift and output levels

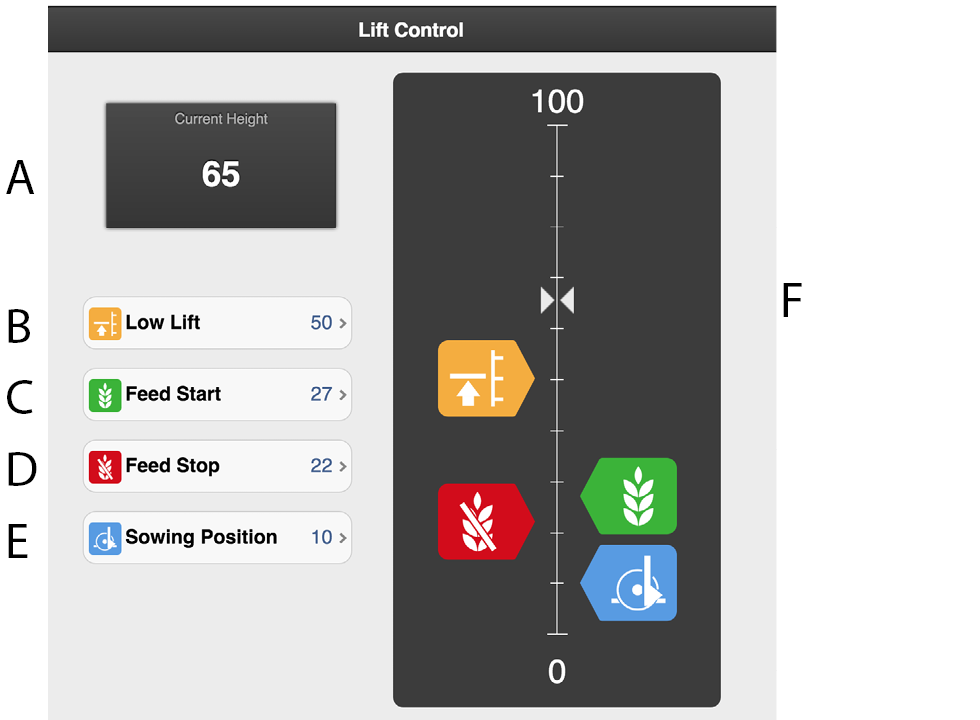

Figure 1.

Settings

Setting the level for the drilling position (TPF) and the LowLift position (TPF and TPL), as well as setting the levels for output start and output stop.

For TPT, TPV and TPR, the setting is only available if the tractor provides the height of the 3 point linkage via the ISO11786 connector or the ISO11783 connector. Refer to Height Source in Chapter 6.1 General machine settings.

  1. Lift height The machine’s momentary height.

  2. LowLift Level The set value is a percentage of the level for a fully raised machine, which is 100. The maximum LowLift level for TPL is 20. (TPF, TPL)

  3. Level for output start The level at which the seed meter begins feeding out seed when the machine is lowered into the drilling position. The default values are the relative current values for the LowLift and drilling positions (for the machines where they are available). If the LowLift or drilling positions are changed, the output start level will also be adjusted.

  4. Level for output stop The level at which the seed meter stops feeding out seed when the machine is raised to the LowLift position. The default values are the relative current values for the LowLift and drilling positions (for the machines where they are available). If the LowLift or drilling positions are changed, the output start level will also be adjusted.

  5. Drilling position (TPF)

  6. Indication arrows

CAUTION

The drilling position should not be changed when feed start, feed stop or LowLift are set! The setting is made during basic machine setup.

(The drilling depth is set individually for each row unit.)

Adjustment

  1. Press the button for the function to be set in the field with the height scale. The corresponding function button can also be pressed on the VT.

  2. Raise or lower the drill unit to the desired position using the hydraulic lever. The indicator arrow (F) follows the drill unit’s movement along the height scale.

  3. Confirm the value between each setting.

Note

and can never be higher than or lower than .

can never be higher than .
