6.3.7 Tramlining Compensation

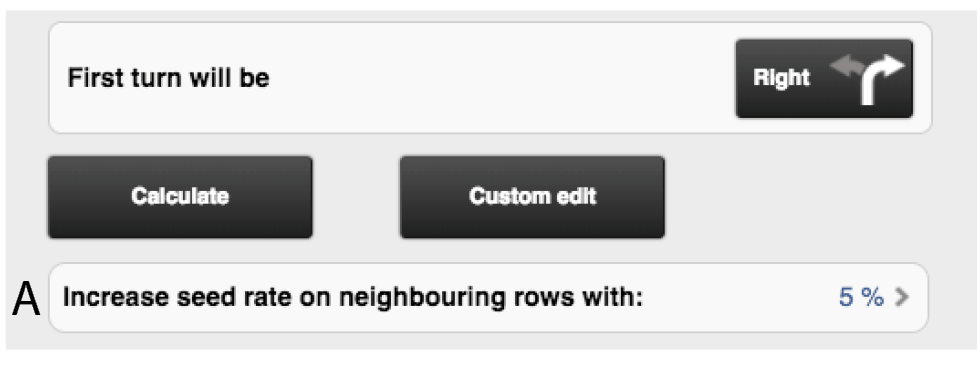

Figure 1.
Tramlining Compensation is a function that allows you to vary the feed rate using the tramline program. By entering a percentage in (A), all rows adjacent to a tramlining row will receive an increased feed rate, in accordance with the percentage entered.

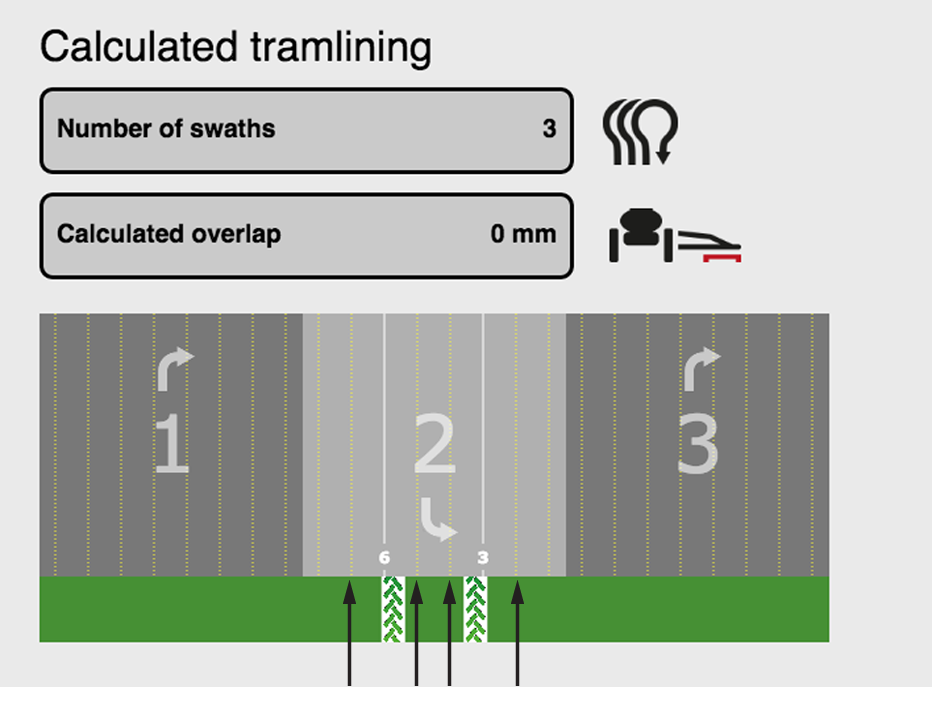

Figure 2.
In the figure above, the arrows indicate, for example, which rows will be compensated.
