17 Download Instructions and Movies

Important

To download instructions and movies to your iPad, it must be connected to the Internet.

The machine's software is updated continuously and to ensure that you have access to the latest version of the instructions, it is also possible to download both the instructions and Quick start movies directly to your iPad.

The instructions and movies are stored locally on your iPad.

To download to your iPad, do the following:

  1. Connect to the Internet.

  2. Start the app.

  3. Go to the ‘How to’ page.

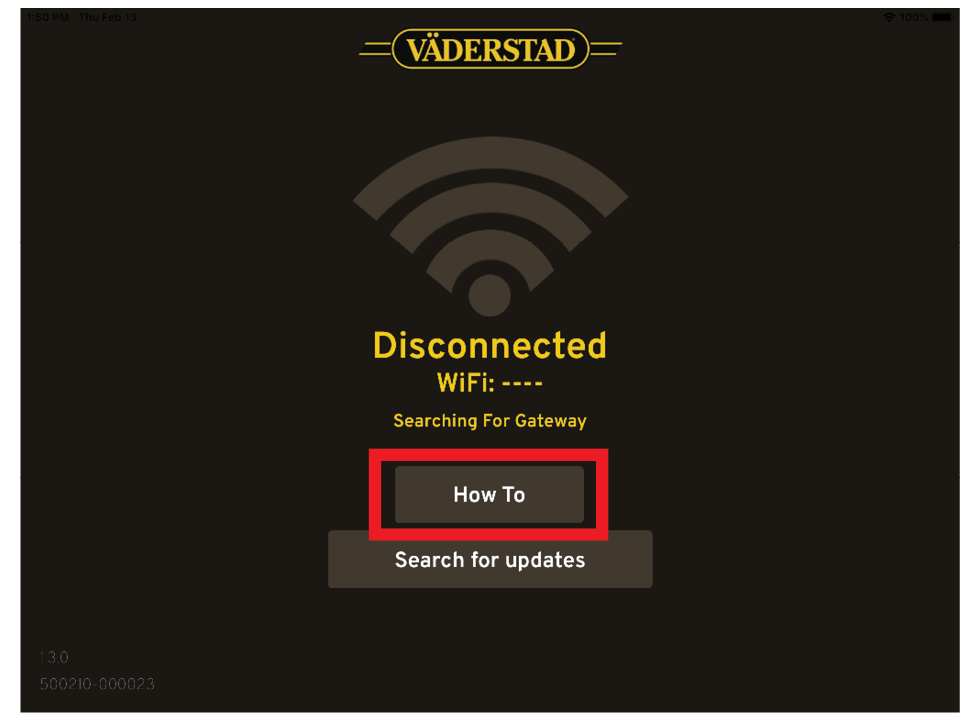

    Figure 1.

  4. To download documents. Press + the character in the top right corner.

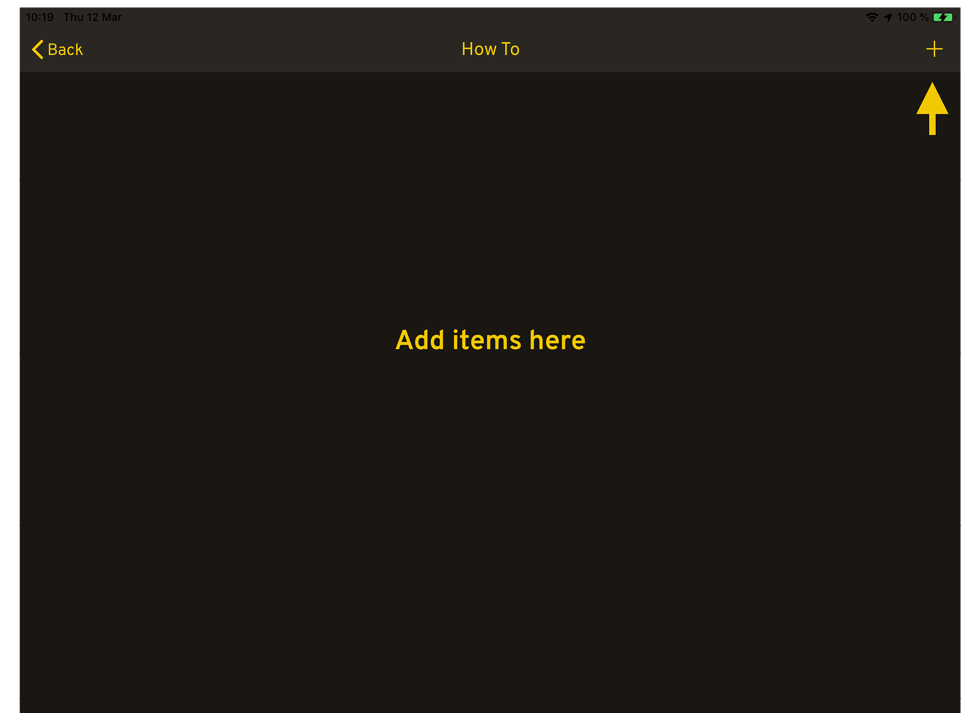

    Figure 2.

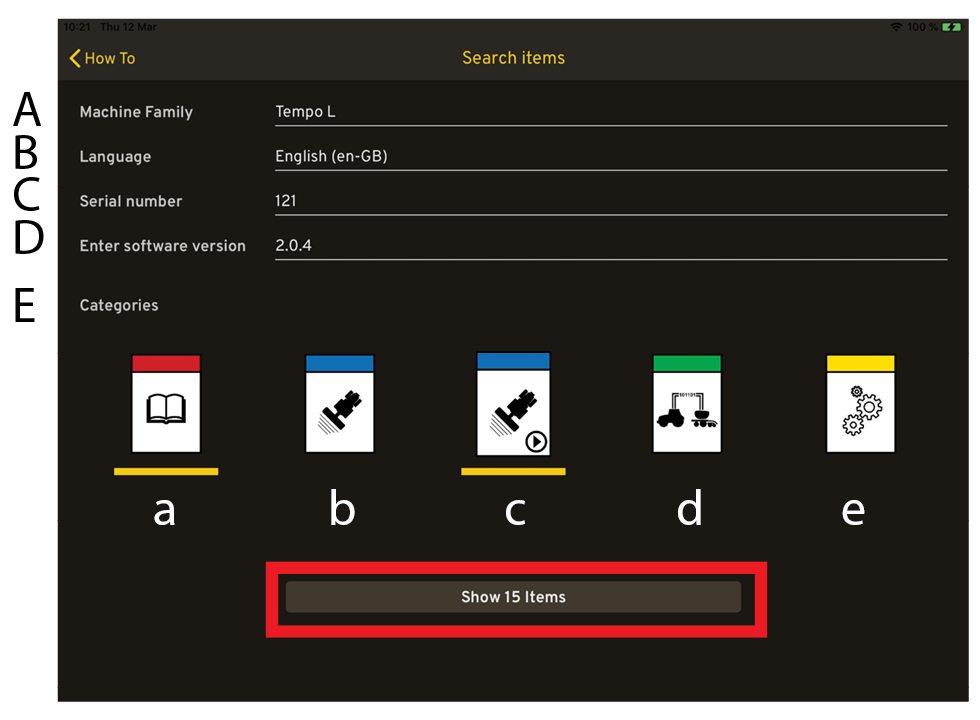

Figure 3.

On the Search page, you can filter on:

  1. Machine family

  2. Language

  3. Serial number

  4. Software version

  5. Category

  1. Instruction manual

  2. Quick Start

  3. Quick Start movie

  4. Quick Start Isobus

  5. Spare parts book

  1. Machine family and language are mandatory fields. Press the Show button.

  2. The search results page appears.

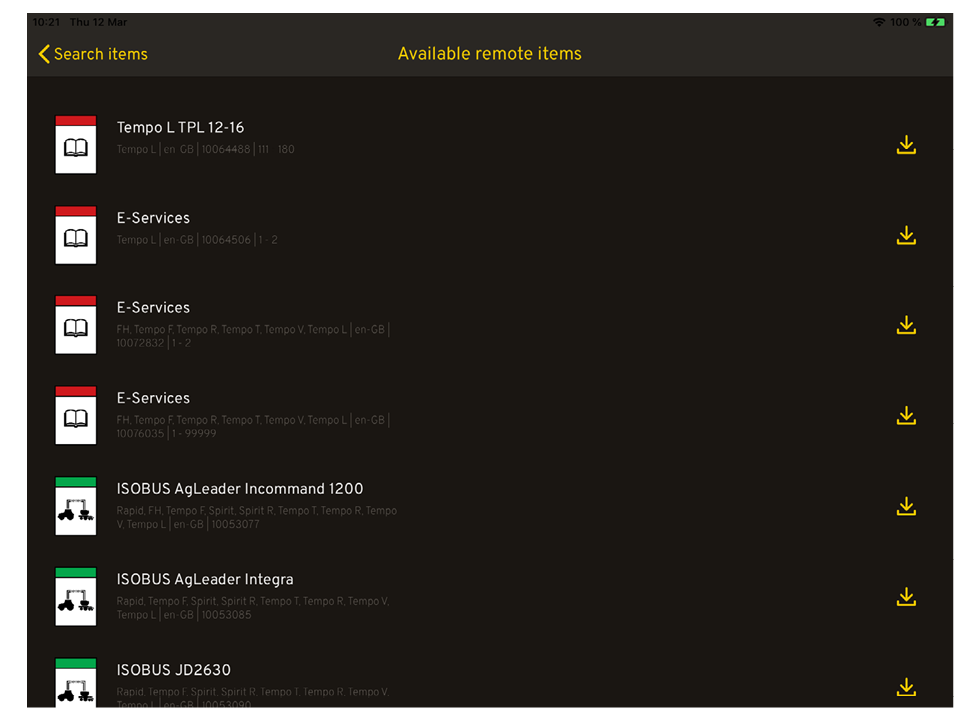

    Figure 4.

  3. To download the document, click on the icon on the right-hand end of each row.

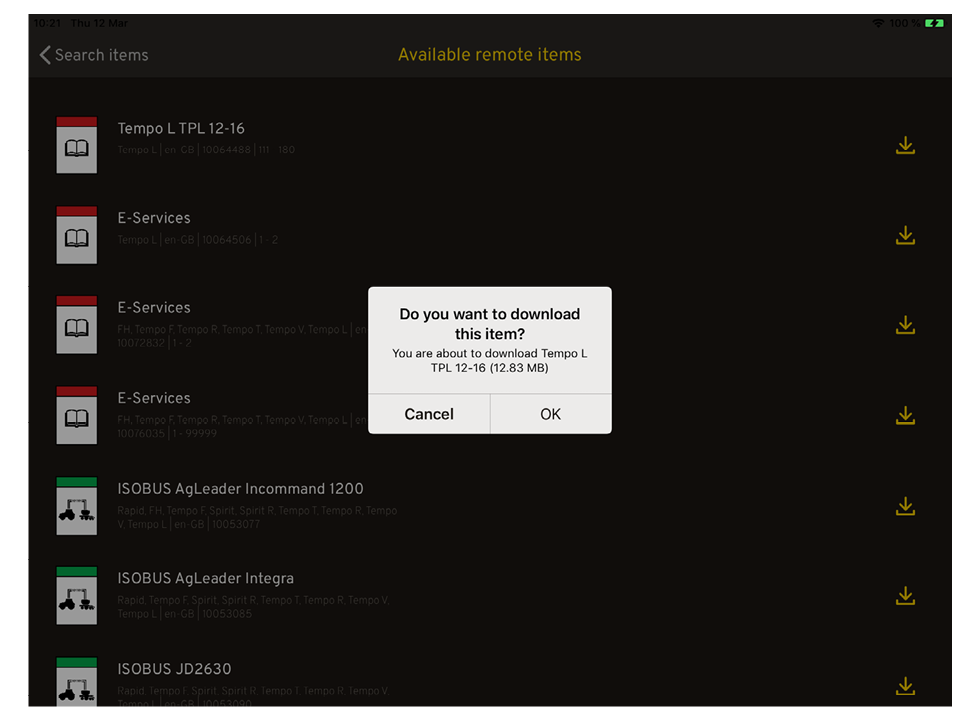

    Figure 5.

  4. Then press OK.

  5. Download started. Stop downloading by clicking on the stop icon on the right.

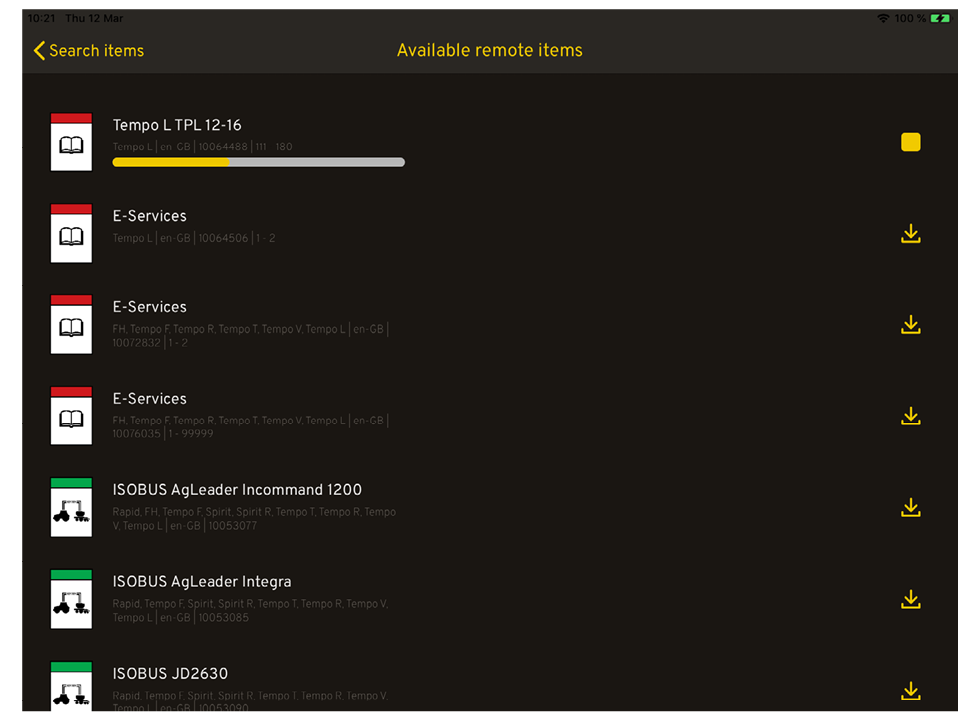

    Figure 6.
