11.6.1 Adjusting the sensors
Adjusting the detectors on the left and right distributor heads is the same, images of the left distributor head are displayed.

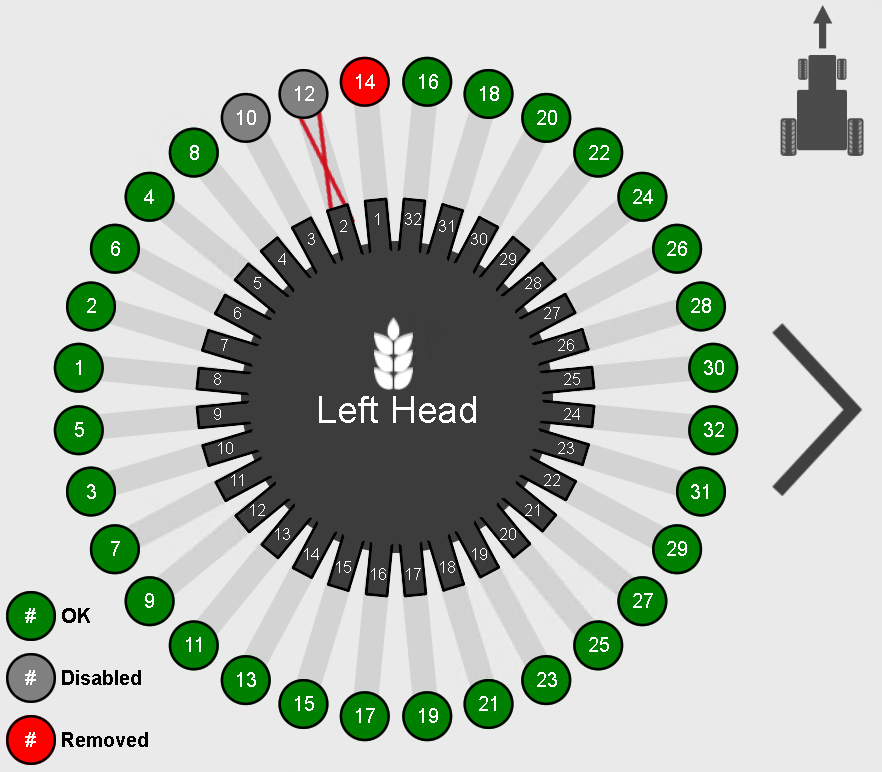

Figure 1.
Defective sensor
The detector is marked red when the system discovers that a detector is in the wrong place or completely missing. After replacing a faulty detector, it is necessary to perform “Readdress" via configuration/SeedEye
Double row distance:
Mark the status of the seed row as grey if you intend to sow with double row spacing in order to prevent closed seed rows from warning of incorrect flow. A seed row marked as grey and with a cross tells the system to prevent low flow warnings (no. 580) for this detector.

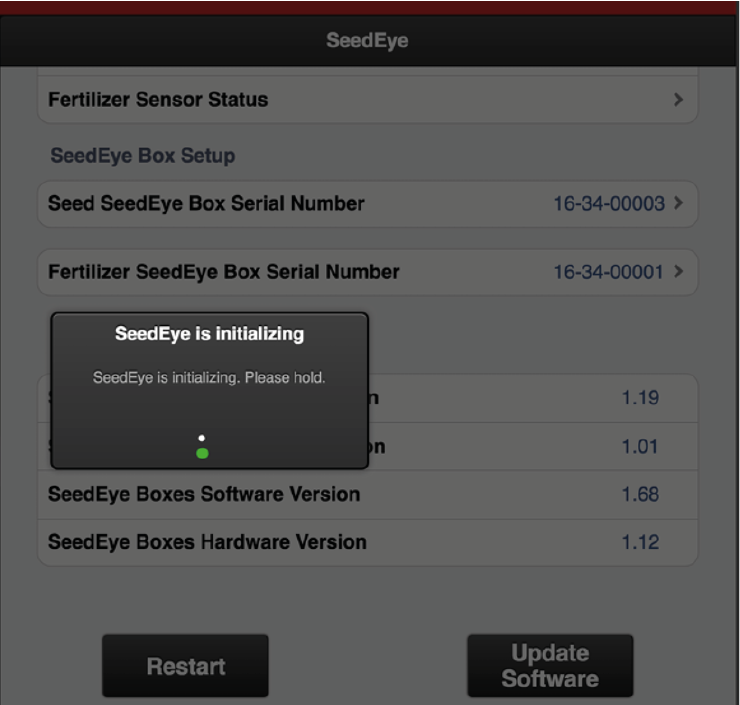

Figure 2.
SeedEye is automatically reregistered when the sensors are updated.
