15.2 Workstation, inputs and outlets

The images show the Workstation’s inputs and outputs during alarms (the icon in green indicates which information is displayed on the screen)

  1. shows entries

  2. shows exits

  3. Current software in WorkStation

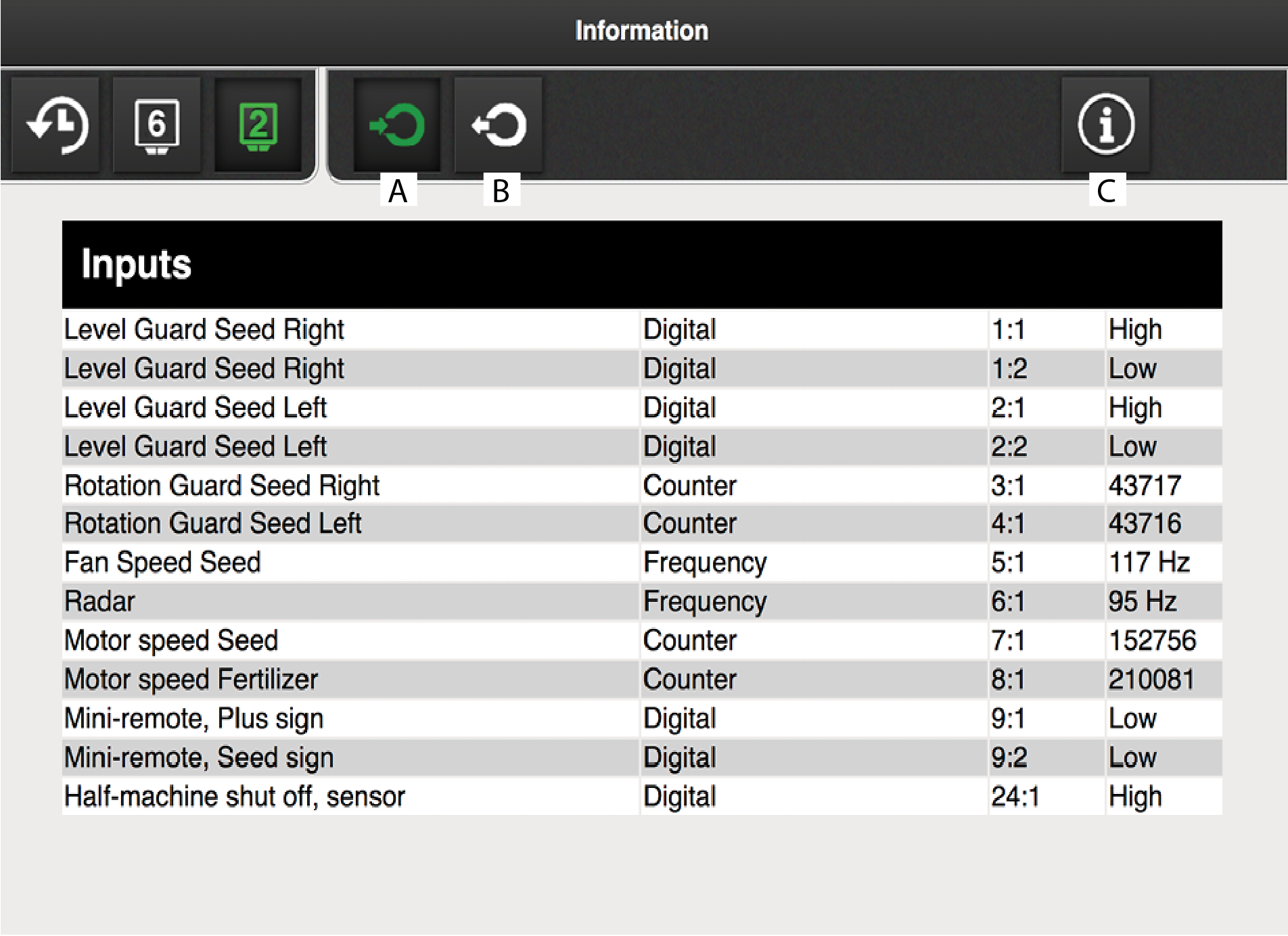

Figure 1. Workstation 2, inputs

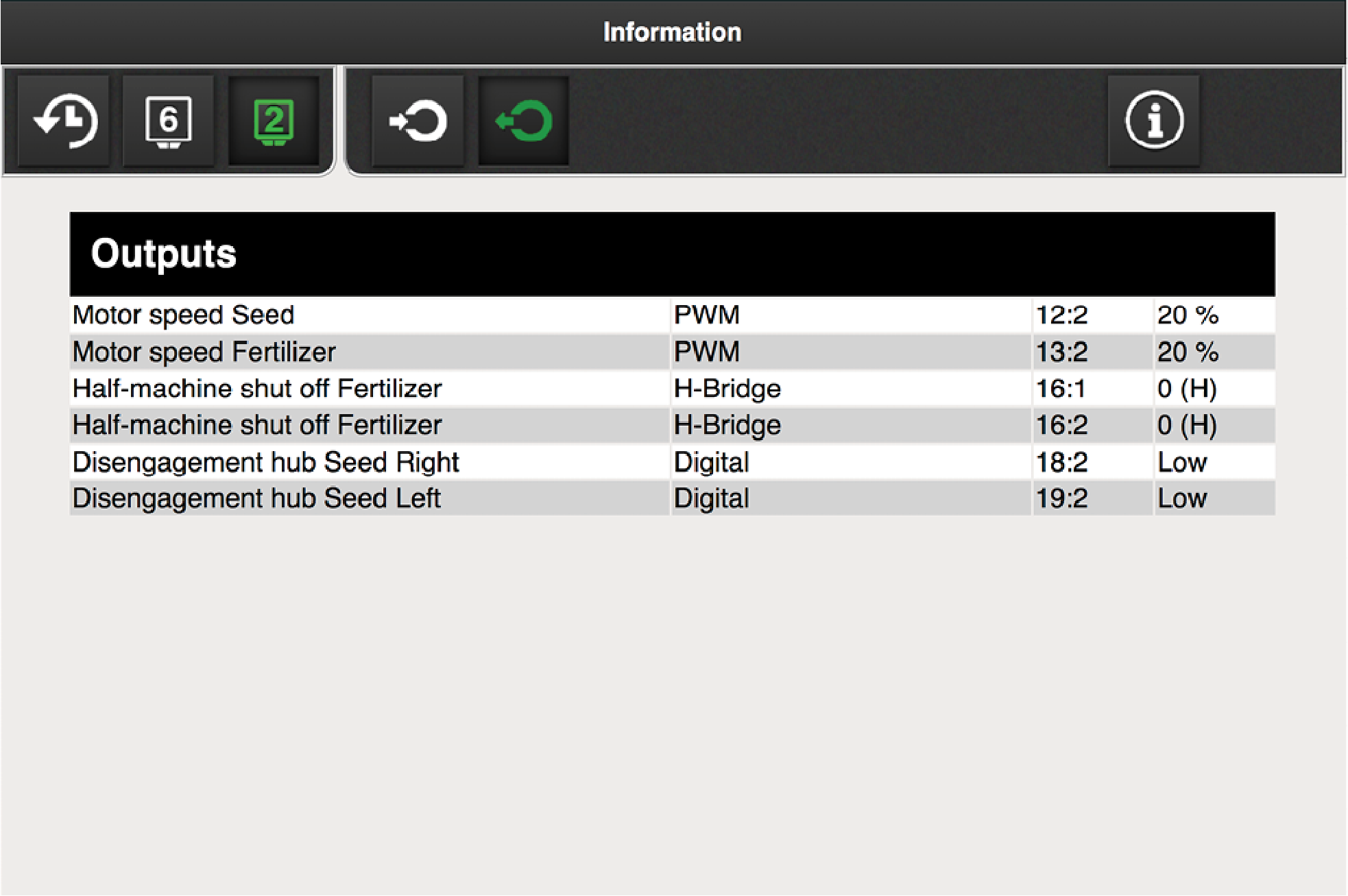

Figure 2. Workstation 2, outputs

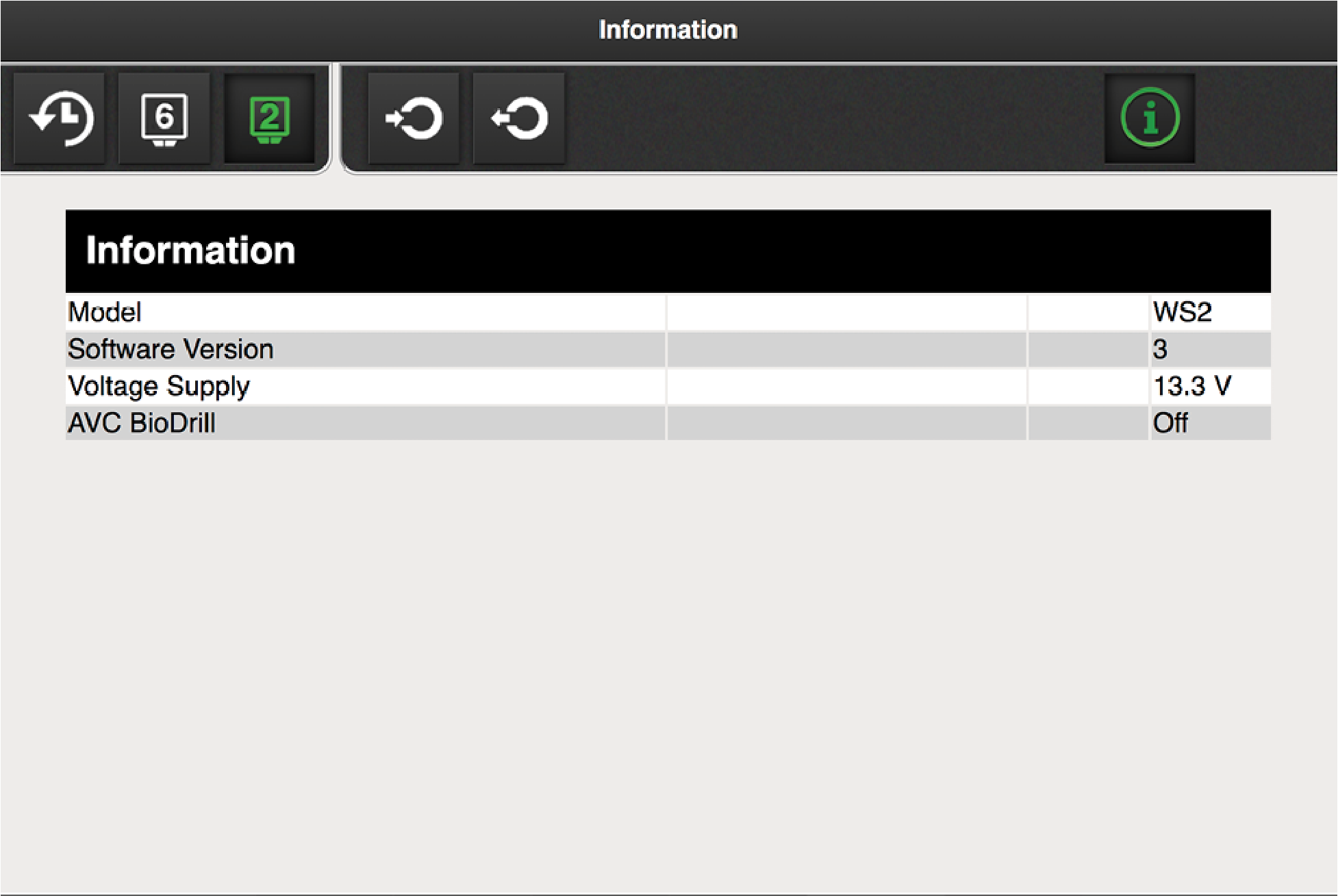

Figure 3. Workstation 2, versions

Figure 4. Workstation 6, BioDrill

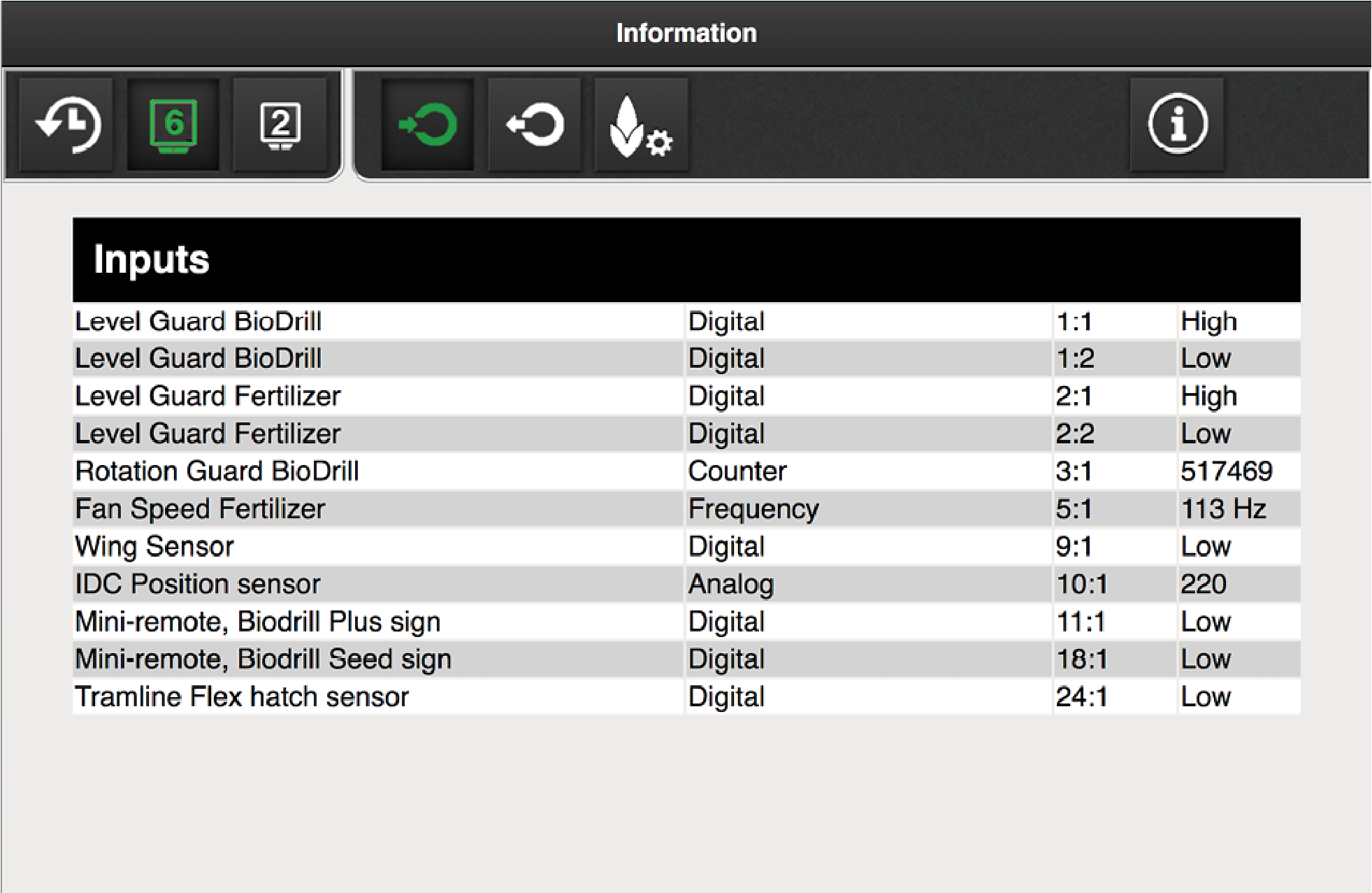

Figure 5. Workstation 6, inputs

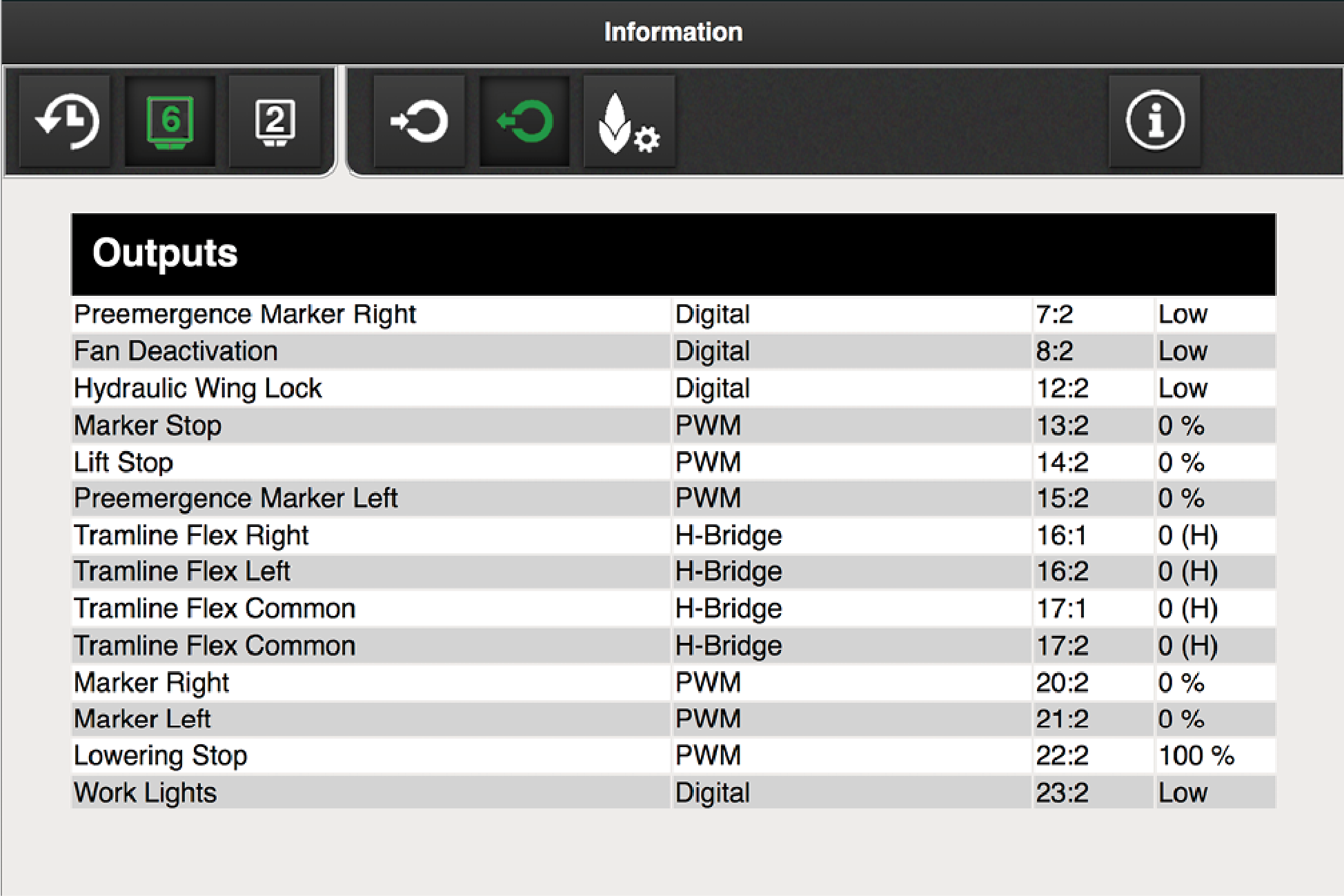

Figure 6. Workstation 6, outputs

Figure 7. Workstation 6, versions
