7.6.1 Calibration procedure

Note

Torsion tests for seed, fertiliser and BioDrill are to be conducted prior to starting the calibration of the oil flow.

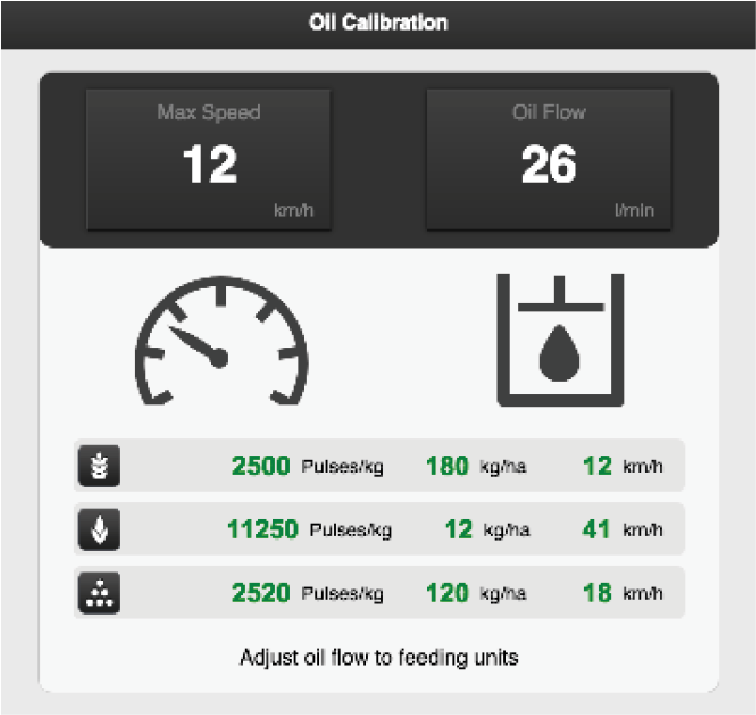

Figure 1.

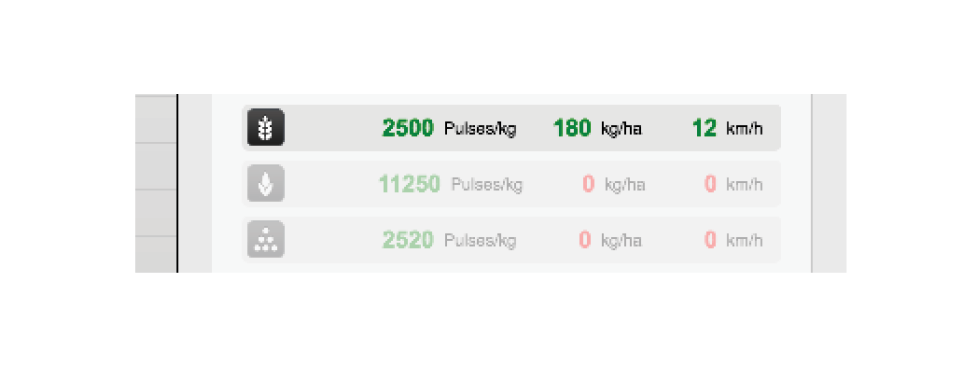

  • Green numbers show the values from the torsion tests.

  • Red numbers indicate that the values from the torsion tests are missing.

  1. Turn off the hydraulic outlet for feed output on the tractor.

  2. Mechanically activate the left and right half machine shut-offs on the machine in order to prevent feed output during the calibration of the oil flow.

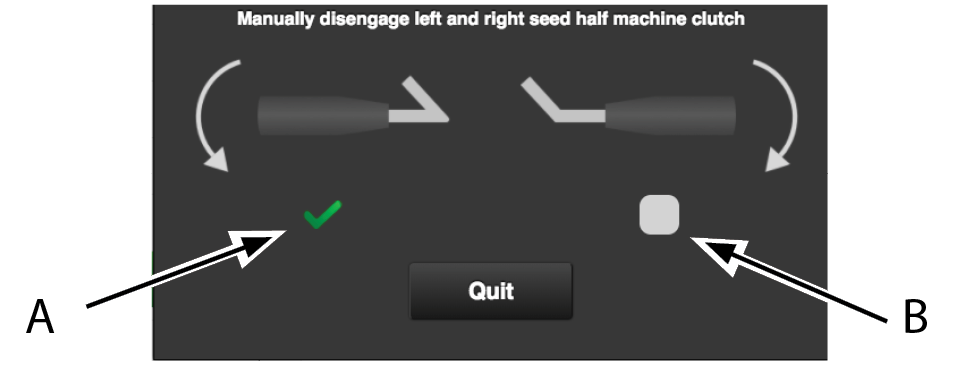

  3. Confirm that the half machine shut-off has been activated by clicking in boxes (A) and (B) in the pop-up window that is displayed.

    Figure 2.

  4. Turn on the hydraulic connection for feed output in the tractor and adjust the flow until the desired maximum speed is reached.

    Figure 3.
