6.7.5 System test
The AutoPilot system has a system test mode.
Perform a system test as follows:
Lower the drill onto firm ground.
Switch on the AutoPilot system and the oil supply from the tractor.
Go into the menu for AutoPilot settings.
Press the E button to open the test menu, see Figure 1.
Hold down the F button.

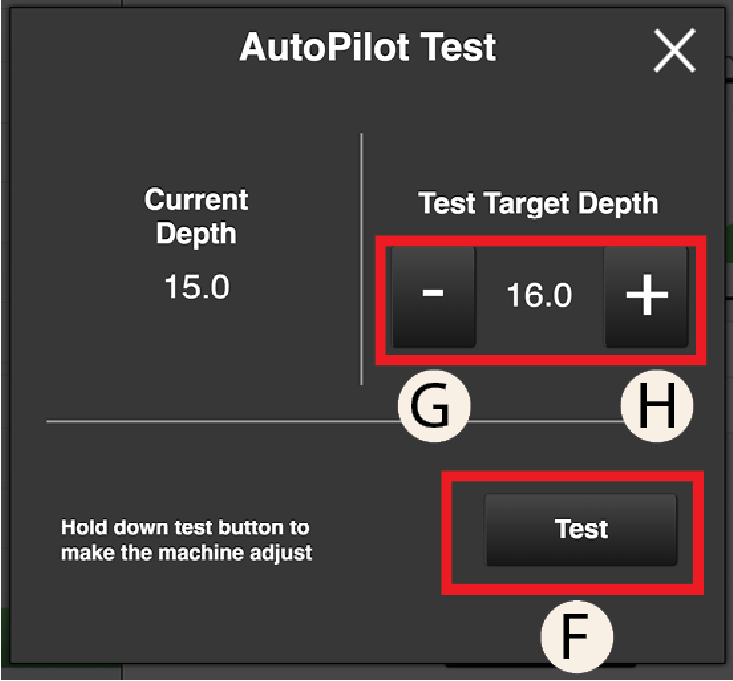

Figure 1. AutoPilot test
Change the Set value by pressing the G and H buttons. If the Set value is reduced to less than the Actual value, the machine should be raised automatically. If the Set value is increased to a value greater than the Actual value, the machine should be lowered automatically.
