6.5.1 Alarm settings

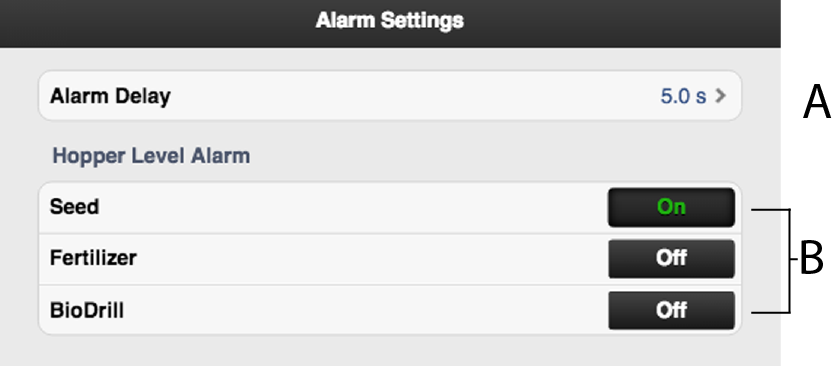

In the alarm settings menu, select the machine’s low level sensors for seed, fertiliser and BioDrill (B).
An alarm delay (A) in seconds should also be specified here.
Figure 1.
When an alarm is triggered, a pop-up window appears in front of the machine symbol containing information about the nature of the alarm. At the same time, the alarm symbol is lit and an acoustic signal attracts attention. The pop-up window can show a maximum of two alarms. If there are more alarms, this is indicated with a row of dots on row three. The number of alarms is also shown in the alarm symbol. See point A in Figure 1

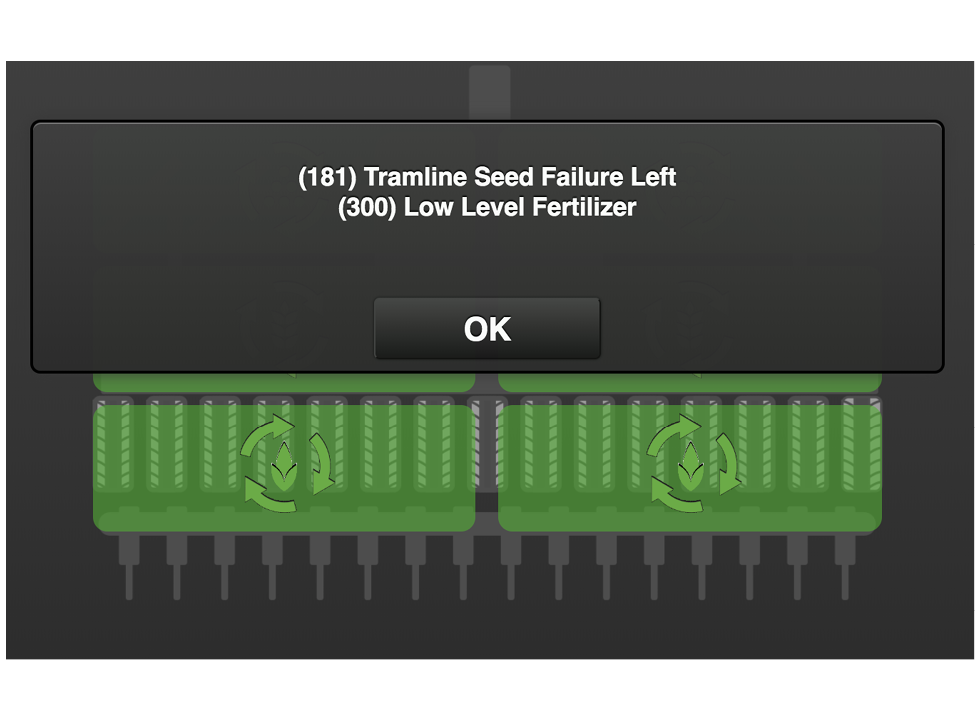

Figure 2. Pop-up window containing information on the nature of the alarm
